Parameters
| System Voltage | 832V280Ah |
| Battery Module | 166.4V280Ah |
| Cooling Method | Liquid cooling |
| Normal charging and discharging current(A) | 140A |
| Water Proof | IP65 |
| Dimensions(W/D/H,mm) | 1520*1280*2200 |
Download
Modular design & Adaptability

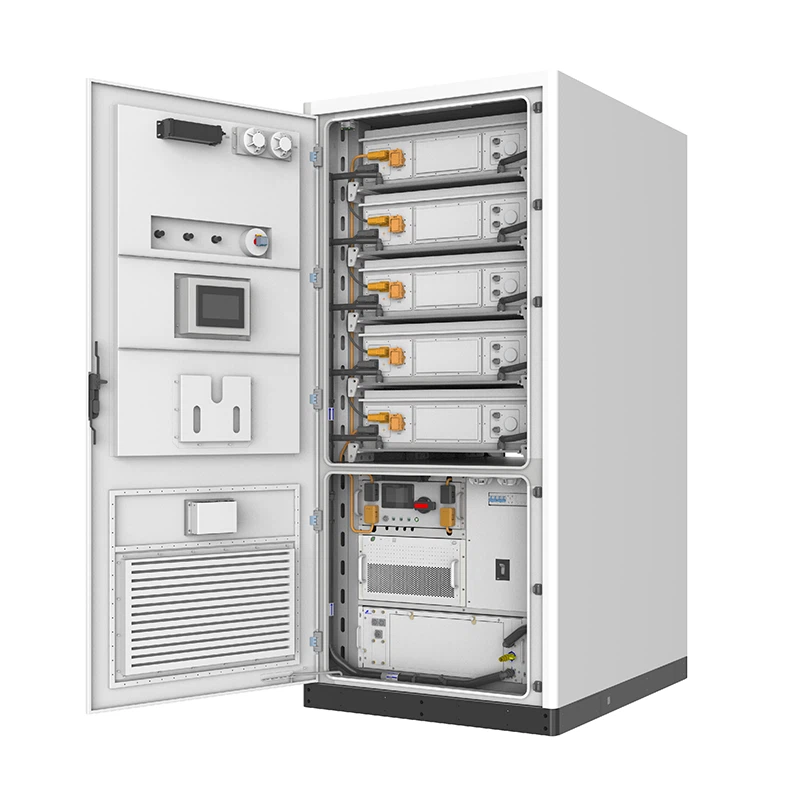

233kWh DC liquid-cooled energy storage cabinet, suitable for outdoor multi-machine parallel installation. When 10 units are connected in parallel, it can reach 2.33MWh. When combined with an integrated PCS integrated machine, it can meet the usage scenarios of photovoltaic pairing or AC coupling.
The system combination is flexible, and the after-sales maintenance is convenient. The liquid-cooled cabinet can meet the requirements of different temperatures and has a strong environmental adaptability.
The quantity can be appropriately configured according to the budget of different project stages, and it is convenient for future expansion. It can be used in hotels, schools, hospitals, factories, and can meet the usage needs of most industrial and commercial scenarios.
Multi-scheme design
Pure DC-side energy storage cabinet design
Bulit-in EMS, PCS and BMS, auxiliary power redundancy design
External hybrid three-phase inverter design
Liquid Cooling System
Circulating liquid cooling, Operating at full power, the maximum temperature of the battery is below 38℃, and the temperature difference is less than 3℃
Reliable
One cluster management, cloud-edge collaboration,real-time data
monitoring, and fault warning;
Safety
Lithium Iron Phosphate(LFP)batteries, battery packs and system all use aerosol fire extinguishing fluids;
High-protection
5cm fire proof rock wool, 1 hour flame retardant protection, C4 shell protection;
